Mainboard BIOSTAR TA990FXE Extreme Edition

Akhirnya BIOSTAR juga ikut ambil bagian dalam merilis mainboard socket AM3+ untuk processor AMD Bulldozer yaitu TA990FXE Extreme Edition. Didesain berdasarkan Chipset AMD 9 Series yakni South Bridge 990FX serta SB950 North Bridge. BIOSTAR TA990FXE Extreme Edition tetap menjaga kompabilitas dan mendukung processor AMD Phenom II, AMD Athlon II, AMD Sempron, processor AMD 140W dan AMD Multicore x8/x6.

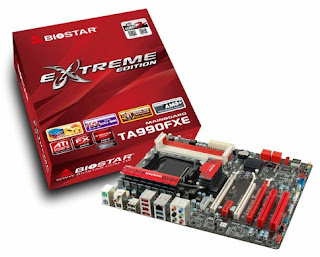

Mainboard BIOSTAR TA990FXE Extreme Edition

Mainboard BIOSTAR TA990FXE Extreme Edition support memory dual channel DDR3 dengan kapasitas 16 GB pada 4 slot DIMM. Selain itu dukungan SATA 6 Gbps juga hadir serta mendukung teknologi transfer data super speed USB 3.0. Tiga slot PCI Express 2.0 ditanamkan pada BIOSTAR TA990FXE Extreme Edition yang siap dikonfigurasikan pada AMD CrossFireX.

BIOSTAR TA990FXE Extreme Edition form factor ATX ini dipersenjatai sistem suara mempergunakan Realtek ALC892 8-channel HD Audio. Mendukung Blue-ray audio DRM yang menawarkan ouput audio berkualitas tinggi 24 bit/192 KHz.

Spesifikasi BIOSTAR TA990FXE Extreme Edition :
Spesifikasi
Chipset
·   AMD 990FX / SB950
CPU SUPPORT
·   AMD FX™ Processor
·   AMD Phenom™ II X6 Processor
·   AMD Phenom™ II X4 Processor
·   AMD Phenom™ II X3 Processor
·   AMD Phenom™ II X2 Processor
·   AMD Athlon™ II X4 Processor
·   AMD Athlon™ II X3 Processor
·   AMD Athlon™ II X2 Processor
·   AMD Sempron™ Processor
·   Maximum CPU TDP (Thermal Design Power) : 140Watt
HT
·   Support HT 5.2G
MEMORY
·   Support Dual Channel DDR3 2000(OC)/1866/1600/1333/1066/800 MHz
·   4 x DDR3 DIMM Memory Slot
·   Max. Supports up to 16GB Memory
EXPANSION SLOT
·   2 x PCI Slots
·   1 x PCI-E x1 2.0 Slot
·   3 x PCI-E x16 2.0 Slot (x16, x16, x4)
STORAGE
·   5 x SATA3 6Gb/s Connector
·   Support SATA RAID: 0,1,5,10
USB
·   ASMedia ASM1042 USB 3.0 controller
·   2 x USB 3.0 Port
·   1 x USB 3.0 Header
·   4 x USB 2.0 Port
·   2 x USB 2.0 Header
IEEE 1394
·   VIA VT6315N
·   1 x IEEE 1394a Port
·   1 x IEEE 1394a Header
GbE
·   Atheros AR8151 - 10/100/1000 Controller
CODEC
·   Realtek ALC892 8-Channel HD Audio
REAR I/O
·   1 x PS/2 Mouse
·   1 x PS/2 Keyboard
·   1 x eSATA2 3Gb/s Connector
·   1 x FireWire IEEE 1394a Port
·   2 x USB 3.0 Port
·   4 x USB 2.0 Port
·   1 x RJ-45 Port
·   6 x Audio Connector
·   1 x S/PDIF Out Port
INTERNAL I/O
·   1 x USB 3.0 Header
·   2 x USB 2.0 Header
·   5 x SATA3 6Gb/s Connector
·   1 x Front Audio Header
·   1 x Front Panel Header
·   1 x S/PDIF-OUT Header
·   1 x CPU FAN Header
·   2 x System FAN Header
·   1 x Serial Header
·   1 x FireWire IEEE 1394 Header
·   1 x CIR Header
DIMENSION
·   ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
OS SUPPORT
·   Support Windows XP / Vista / 7
ACCESSORIES
·   4 x SATA Cable
·   2 x CrossFire Connector
·   1 x I/O Shield
·   1 x CD Driver
·   1 x User Manual
